Flight Dynamic Models (FDM)
REISER develops Flight Dynamic Models (FDM) for realistic simulation of flight behavior. The models reproduce the relevant flight states, system responses and maneuvers and create a robust basis for simulation, training and technical analysis.
Product family
Data & Models
Qualification
Qualifiable up to
FFS Level D
Qualified models
H125
H135 T3H
H145 D2
H145 D3
Qualified models
Flight models for established helicopter types
REISER offers Flight Dynamic Models for different Airbus Helicopters configurations. Each model is matched to the aircraft, the required fidelity and the target platform.
FDM / Types
Airbus

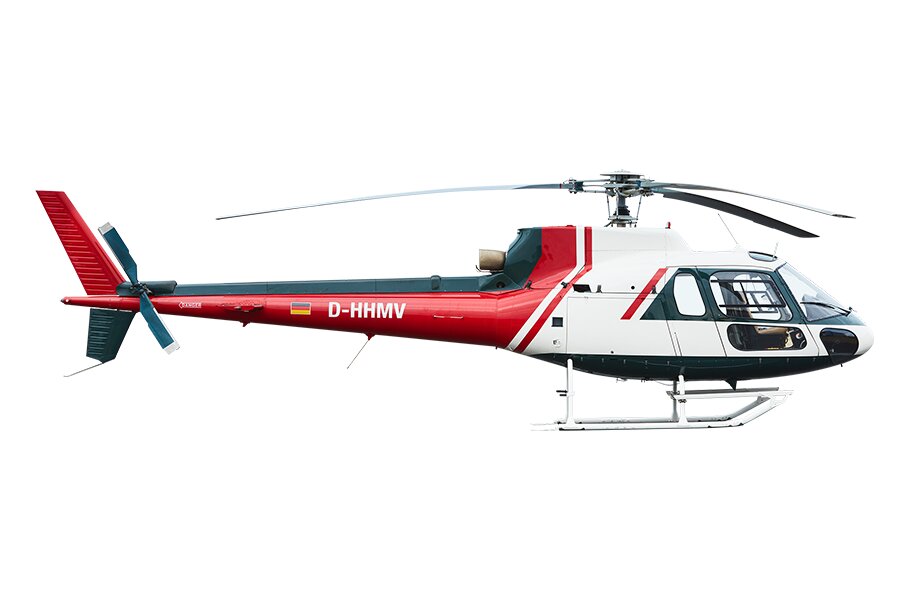

H125
The Flight Dynamic Model for the H125 reproduces the relevant flight states and the dynamic behavior of the helicopter for simulation-based training and development applications.
Airbus
H135 T3H
The H135 T3H model connects to the required subsystems, avionics functions and interfaces in simulator environments.
Airbus
H145 D2
A Flight Dynamic Model for the H145 D2 is available as part of the corresponding simulation solution. The model can be combined with the required system and avionics models to form a continuous simulation environment.
Airbus

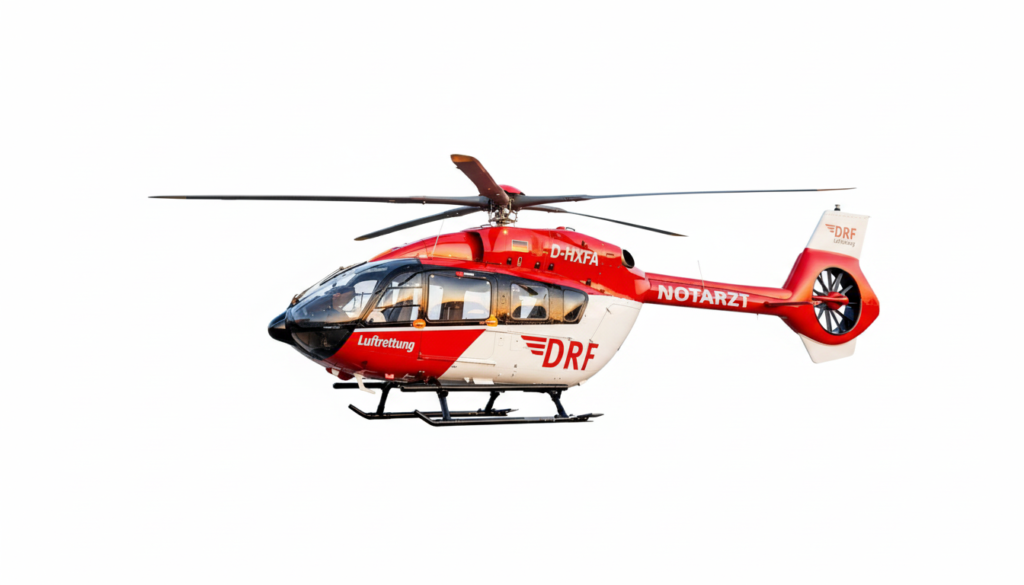

H145 D3
The H145 D3 Flight Dynamic Model is designed for integration into high-fidelity helicopter simulation. Validation draws on flight data, the Rotorcraft Flight Manual and further relevant aircraft documentation, among other sources.
Overview
Flight behavior as a simulation-ready model
OEM-independent flight models for simulators. Flight Dynamic Models reproduce the dynamic behavior of a helicopter in simulation. They combine flight behavior, subsystems and avionics into one model that can be used in Full Flight Simulators and Flight Training Devices.
The challenge
OEM flight models are often expensive and not always available in the form required. Simulator manufacturers and system integrators therefore need models that fit the aircraft, the existing system architecture and the planned qualification target.
The solution
REISER develops OEM-independent Flight Dynamic Models including the required subsystems and avionics models. The models are based on our own data and can be integrated into existing or new simulator solutions on a project-specific basis.
The benefits
OEM-independent and flexible to integrate
A digital twin of your helicopter
Qualifiable up to FFS Level D
Including subsystem and avionics models
Fully modifiable on customer request
Typical application scenarios
Simulator Development
Model Validation
Research
Engineering
The system in detail
The FDM has a modular structure and connects to the relevant components of the simulator environment.
1
Flight behavior and subsystems
The model reproduces the aerodynamic, mechanical and environmental behavior of the helicopter. Specialized subsystems provide the states relevant to the simulation.
Complete subsystems
Validated flight dynamics
Two synchronized XR stations
2

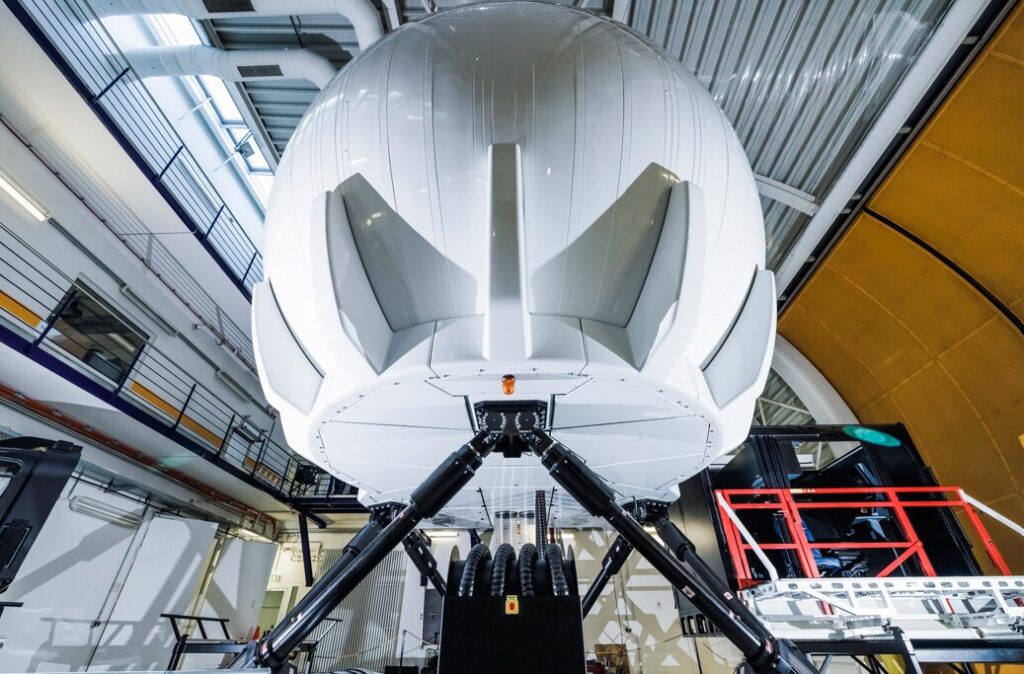

Avionics models

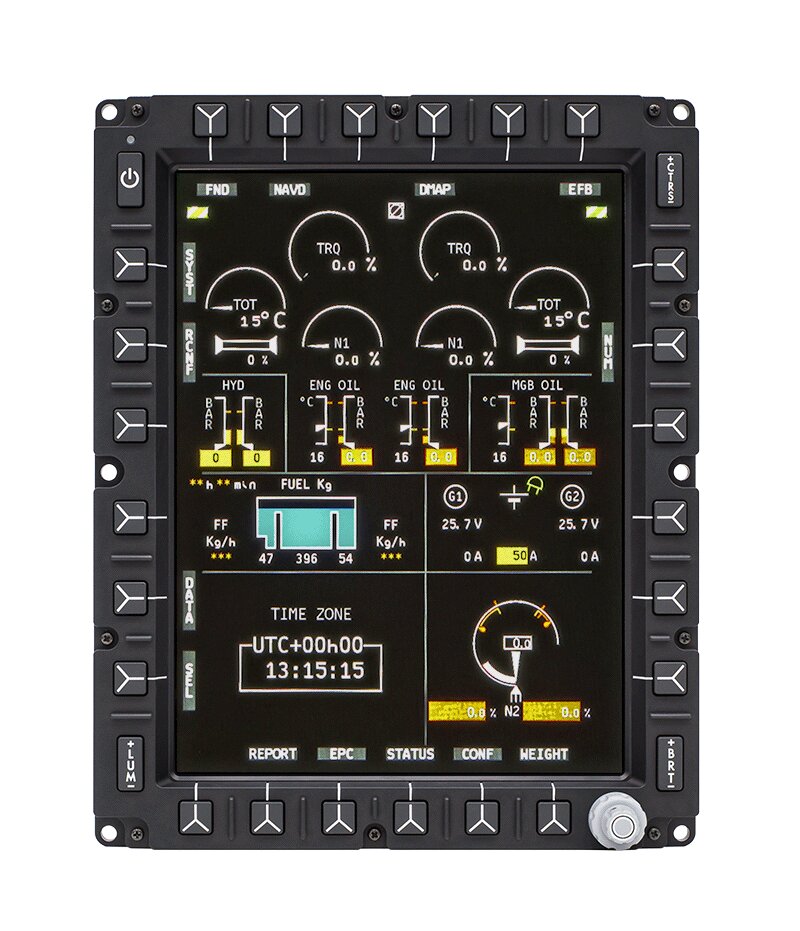

The avionics models reproduce the relevant indications, systems and operating logic in a type-specific way and can be integrated into the respective flight and system models.
Avionics models included
System behavior as in the real aircraft
Modular cockpit approach
3
Interfaces and integration
The FDM can be connected to visual and out-of-the-window systems, control loading, motion, cueing, avionics and the Instructor Operating Station. The exact form depends on the interfaces and requirements of the target platform.
Project-specific interfaces
Connection to visual, CLS and motion
4
Validation and qualification
Validation is based on suitable references, including flight test data, the Rotorcraft Flight Manual and further technical aircraft documentation. The evidence for the intended scope of qualification is matched to the model and the configuration of the overall system.

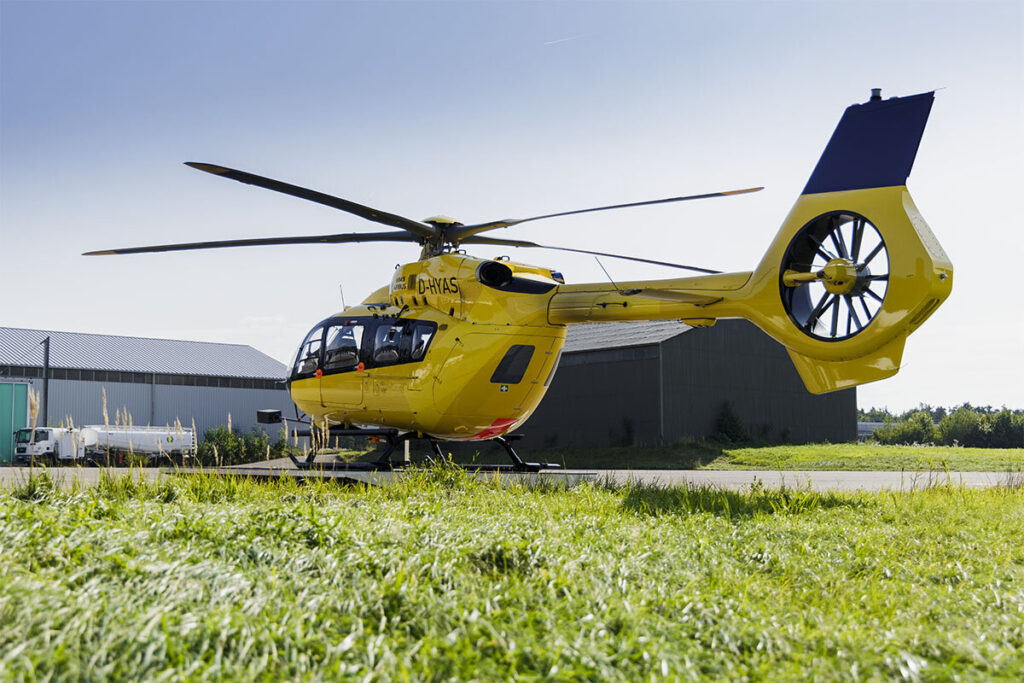

Data flown by REISER
OEM-independent
Up to FFS Level D
Experience our Flight Dynamic Models live.
On site in Berg or remotely. Our experts show you the system in operation and answer technical questions directly.
FAQ
Typical questions about Flight Dynamic Models.
Which helicopter types are Flight Dynamic Models available for?
Flight Dynamic Models are available for the H125, H135 T3H, H145 D2 and H145 D3. The exact scope of qualification is confirmed on a project basis and depends on the model, the platform and the overall system configuration.
Are the Flight Dynamic Models OEM-independent?
Yes. REISER develops OEM-independent Flight Dynamic Models and adapts them to the requirements of the respective simulator platform and system architecture.
Can the Flight Dynamic Models be qualified up to FFS Level D?
The Flight Dynamic Models can be part of an overall system that is qualifiable up to FFS Level D. The qualification actually achievable depends on the data scope, the model, the simulator platform, the overall system configuration and the applicable qualification requirements.
Which systems are modeled besides flight mechanics?
Depending on the configuration, the engine, hydraulics, electrical system, fuel, lighting, navigation, sound, environmental conditions and avionics can be included, among others. The exact scope is defined on the basis of the required training and qualification profile.
Which avionics are simulated?
The avionics are implemented type-specifically. For the H145 D3, Helionix functions, multi-function displays, HTAWS, ACAS, Synthetic Vision and EuroNav 7 can be part of the simulation, among others. Which functions are integrated depends on the agreed configuration.
Can the Flight Dynamic Models be integrated into existing simulators?
Yes. Integration is planned on the basis of the existing interfaces, the simulator architecture and the connected systems. These can include the cockpit, control loading, visuals, motion, cueing and avionics.
What data is needed for development?
The data required depends on the type, the model fidelity, the scope of training and the qualification target. Depending on the project, REISER can use its own data and flight test data or include customer data in development and validation.
Does REISER also develop customer-specific models?
Yes. Existing model variants can be adapted to the requirements of the target platform. For new or differing configurations, the effort, data requirements, interfaces and development scope are assessed within the project.
